- 規格型號：69699747
- 頻率：24.576MHz
- 尺寸：2520mm
- 產品描述：艾伯康歐美晶振,ABM10AIG-24.576MHZ-4-T3汽車多媒體晶振,ABM10AIG無鉛晶振，美國Abracon晶振公司，艾博康晶振，ABM10AIG晶振，ABM10AIG-24.576MHZ-4-T3晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，...
艾伯康歐美晶振,ABM10AIG-24.576MHZ-4-T3汽車多媒體晶振,ABM10AIG無鉛晶振
.jpg)

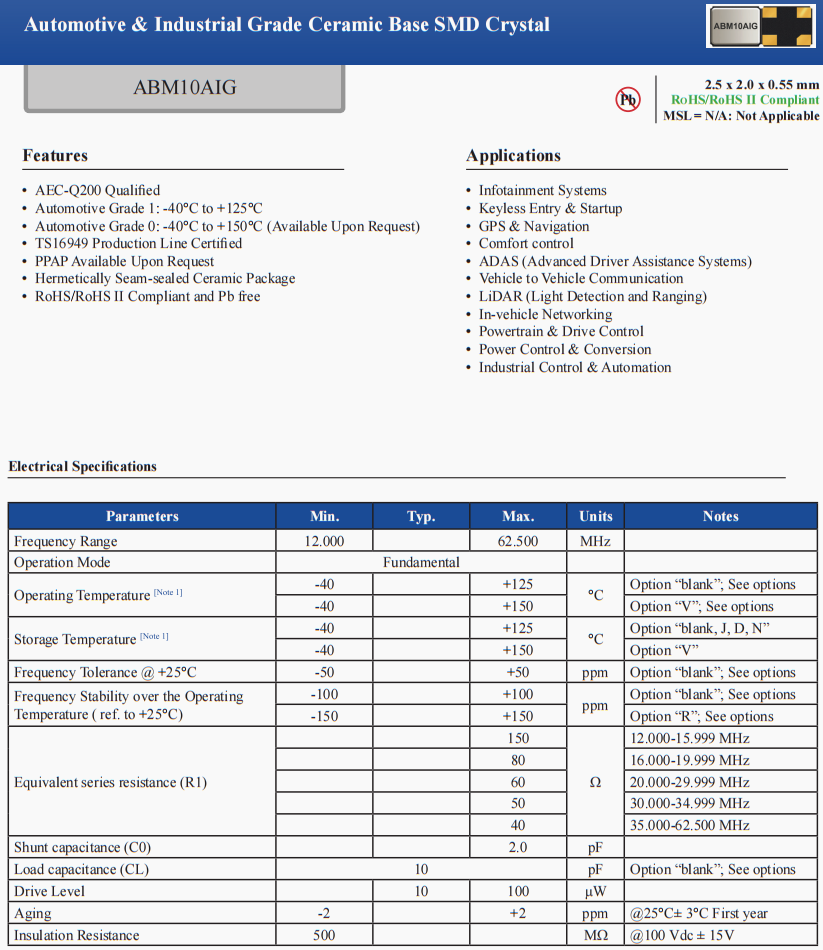

艾伯康歐美晶振,ABM10AIG-24.576MHZ-4-T3汽車多媒體晶振,ABM10AIG無鉛晶振，美國Abracon晶振公司，艾博康晶振，ABM10AIG晶振，ABM10AIG-24.576MHZ-4-T3晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，2520晶振，四腳晶振，石英晶體，貼片晶振。適用于RoHS回流配置文件，AEC-Q200合格，汽車等級1:-40°C至+125°C，汽車等級0:-40°C至+150°C(可根據要求提供)，TS16949生產線認證，PPAP可根據要求提供，密封密封陶瓷封裝，符合RoHS/RoHS II標準且不含鉛，信息娛樂系統，無鑰匙進入和啟動，GPS和導航，舒適控制，ADAS(高級駕駛輔助系統)，車對車通信，激光雷達(光探測和測距)，車載網絡，動力總成和驅動控制，電源控制和轉換，工業控制和自動化
| 參數 | Min. | Typ. | Max. | Units | Notes |
| 頻率范圍 | 12 | 62.5 | MHz | ||
| 工作模式 | Fundamental | ||||
| 工作溫度 | -40 | 125 | °C | Option “blank”; See options | |
| -40 | 150 | Option “V”; See options | |||
| 儲存溫度 | -40 | 125 | °C | Option “blank,J,D, N” | |
| -40 | 150 | Option “V” | |||
| 頻率容差 | -50 | 50 | ppm | Option “blank”; See options | |
| 頻率穩定度 | -100 | 100 | ppm | Option “blank”; See options | |
| -150 | 150 | Option “R”; See options | |||
| 分流電容 | 2 | pF | |||
| 負載電容 | 10 | pF | Option “blank”; See options | ||
| 驅動電平 | 10 | 100 | μW | ||
| 老化 | -2 | 2 | ppm | @25°C± 3°C First year | |
| 絕緣電阻 | 500 | MΩ | @100 Vdc ± 15V | ||
艾伯康歐美晶振,ABM10AIG-24.576MHZ-4-T3汽車多媒體晶振,ABM10AIG無鉛晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABM10AIG-12.000MHZ-2Z-T | Abracon | ABM10AIG | 12 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-12.000MHZ-4-T3 | Abracon | ABM10AIG | 12 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-12.000MHZ-4Z-T3 | Abracon | ABM10AIG | 12 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-12.000MHZ-7-D2Z-T | Abracon | ABM10AIG | 12 MHz | ±50ppm | ±20ppm | 4 pF |
| ABM10AIG-12.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 12 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-12.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 12 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-16.000MHZ-4-T3 | Abracon | ABM10AIG | 16 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-16.000MHZ-4Z-T3 | Abracon | ABM10AIG | 16 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-16.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 16 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-16.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 16 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-20.000MHZ-4-T3 | Abracon | ABM10AIG | 20 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-20.000MHZ-4Z-T3 | Abracon | ABM10AIG | 20 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-20.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 20 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-20.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 20 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-24.000MHZ-2Z-T | Abracon | ABM10AIG | 24 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-24.000MHZ-4-T3 | Abracon | ABM10AIG | 24 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-24.000MHZ-4Z-T3 | Abracon | ABM10AIG | 24 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-24.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 24 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-24.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 24 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-24.576MHZ-4-T3 | Abracon | ABM10AIG | 24.576 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-24.576MHZ-4Z-T3 | Abracon | ABM10AIG | 24.576 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-24.576MHZ-D2Z-T3 | Abracon | ABM10AIG | 24.576 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-24.576MHZ-J4Z-T3 | Abracon | ABM10AIG | 24.576 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-25.000MHZ-4-T3 | Abracon | ABM10AIG | 25 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-25.000MHZ-4Z-T3 | Abracon | ABM10AIG | 25 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-25.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 25 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-25.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 25 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-26.000MHZ-4-T3 | Abracon | ABM10AIG | 26 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-26.000MHZ-4Z-T3 | Abracon | ABM10AIG | 26 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-26.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 26 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-26.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 26 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-27.000MHZ-4-T3 | Abracon | ABM10AIG | 27 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-27.000MHZ-4Z-T3 | Abracon | ABM10AIG | 27 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-27.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 27 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-30.000MHZ-4-T3 | Abracon | ABM10AIG | 30 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-30.000MHZ-4Z-T3 | Abracon | ABM10AIG | 30 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-30.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 30 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-30.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 30 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-32.000MHZ-4-T3 | Abracon | ABM10AIG | 32 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-32.000MHZ-4Z-T3 | Abracon | ABM10AIG | 32 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-32.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 32 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-32.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 32 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-37.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 37 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-40.000MHZ-4-T3 | Abracon | ABM10AIG | 40 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-40.000MHZ-4Z-T3 | Abracon | ABM10AIG | 40 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-40.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 40 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-40.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 40 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-48.000MHZ-4-T3 | Abracon | ABM10AIG | 48 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM10AIG-48.000MHZ-4Z-T3 | Abracon | ABM10AIG | 48 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM10AIG-48.000MHZ-D2Z-T3 | Abracon | ABM10AIG | 48 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM10AIG-48.000MHZ-J4Z-T3 | Abracon | ABM10AIG | 48 MHz | ±50ppm | ±30ppm | 10 pF |
