- 規格型號：14216546
- 頻率：16 MHz
- 尺寸：7050mm
- 產品描述：12.85054,GEYER格耶電子晶振,7050四腳貼片晶振,在-40℃至85℃的寬溫度范圍內穩定工作,抗電磁干擾能力強,廣泛應用于通信,工業,消費電子等多個領域,為各類電子設備的穩定可靠運行提供核心時鐘保障.
12.85054,GEYER格耶電子晶振,7050四腳貼片晶振
.png)
.png)

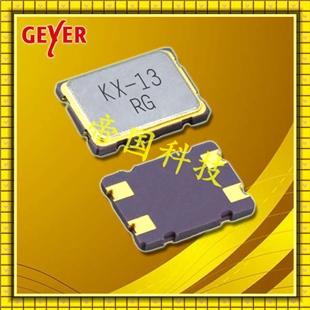

12.85054,GEYER格耶電子晶振,7050四腳貼片晶振
12.85054是GEYER格耶電子推出的高性能晶振,采用7050四腳貼片封裝,憑借穩定的頻率輸出與可靠的結構設計,成為各類電子設備的核心時鐘器件.產品精準輸出16MHz頻率信號,為設備數據處理,信號傳輸提供精準時鐘基準,保障設備運行的穩定性.7050封裝晶振具備優異的機械穩定性與焊接兼容性,引腳布局合理,便于自動化貼片生產,大幅提升產能與產品良率.同時,該晶振經過嚴苛的工藝篩選,具備良好的溫度穩定性與抗干擾能力,能適應復雜的工作環境,廣泛應用于工業控制,消費電子,通信設備等領域,為設備的高效穩定運行提供堅實支撐.
.png)
12.85054,GEYER格耶電子晶振,7050四腳貼片晶振
| 原廠型號 Originalmodel： | 12.85054 | 品牌brand： | GEYER格耶 |
| 品牌brand： | GEYER環保晶振 | 高度PackageHeight： | 1.30mm |
| 型號名稱 Modelname： | KX – 13T | 溫度OperatingTemperature | -40° ~ +85°C |
| Type系列： | MHZ Crystal | 腳位Termination： | 4-Pad |
| 頻率 frequency： | 16.0MHz | 封裝類型PackageType： | 4-smd |
| frequencytolerance頻率容差 | ±30ppm | 最小包裝數MPQ： | 1000 |
| Loadcapacitance 負載電容 | 12pF | Packaging 包裝 | TapeandReel |
| Size/Dimension尺寸 | 7050 mm | 安裝方式 Installation： | Surfacemount |
.png)
12.85054,GEYER格耶電子晶振,7050四腳貼片晶振
12.85054,GEYER格耶電子晶振,7050四腳貼片晶振
| 12.87000 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87001 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87002 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87034 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 4 pF | ± 20 ppm |
| 12.87080 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87081 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87083 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87086 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 10 ppm |
| 12.87090 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87095 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 10 ppm |
| 12.87105 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 10 ppm |
| 12.87107 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87109 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12 pF | ± 15 ppm |
| 12.87110 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87111 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87112 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87113 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87114 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87115 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87116 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87118 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87119 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87120 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87121 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87123 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 30 ppm |
| 12.87126 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87127 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 30 ppm |
| 12.87128 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87129 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87130 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87131 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87132 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87133 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87134 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87135 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87136 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87137 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87138 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87139 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87143 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87144 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 5.0 ppm |
| 12.87145 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87146 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 10 ppm |
| 12.87147 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87148 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87149 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87150 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87151 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 30 ppm |
| 12.87152 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87153 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87155 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87157 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87158 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87159 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87160 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87161 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87163 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87164 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 9 pF | ± 30 ppm |
| 12.87165 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87166 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
