- 規格型號：49561727
- 頻率：25 MHz
- 尺寸：7050mm
- 產品描述：SIT8208AI-82-33S-25.00000X,SiTime可編程晶振,7050陶瓷貼片晶振,25.00000MHz標準頻率可直接適配網絡通信,智能家居,車載電子等核心場景.產品具備極強的環境適應性,能抵御振動,沖擊等復雜工況影響,時鐘信號傳輸穩定無失...

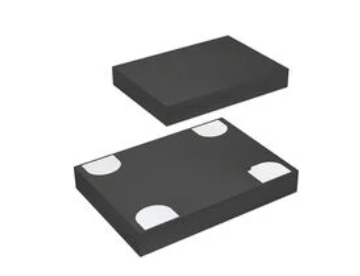

SIT8208AI-82-33S-25.00000X,SiTime可編程晶振,7050陶瓷貼片晶振
.png)
.png)
SIT8208AI-82-33S-25.00000X,SiTime可編程晶振,7050陶瓷貼片晶振
SiTime原裝正品SIT8208AI-82-33S-25.00000X可編程晶振,采用7050貼片封裝晶振標準陶瓷貼片封裝,25.00000MHz精準頻率輸出,全程遵循嚴苛的品質管控流程,通過多項國際認證.產品具備優異的長期穩定性,老化率低,使用壽命長,能有效降低設備后期維護成本.可編程特性簡化了供應鏈管理,單一型號可覆蓋多類產品需求,同時陶瓷貼片封裝適配無鉛焊接工藝,符合環保標準,是工業級,消費級電子設備的高性價比時鐘部件之選.
.png)
SIT8208AI-82-33S-25.00000X,SiTime可編程晶振,7050陶瓷貼片晶振
| 原廠型號 Originalmodel： | SIT8208AI-82-33S-25.00000X | 品牌brand： | SiTime |
| Manufacturer品牌 | SiTime黑色陶瓷晶振 | OperatingTemperature溫度 | -40+85℃ |
| Series型號 | SIT8208AI | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 0.9mm |
| Frequency頻率 | 25M | Termination 腳位 | 4-pad |
| 輸出方式 Output： | LVCMOS LVTTL | PackageType 封裝類型 | 4-smd |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | 25PP | 安裝方式 Installation： | Surfacemount |

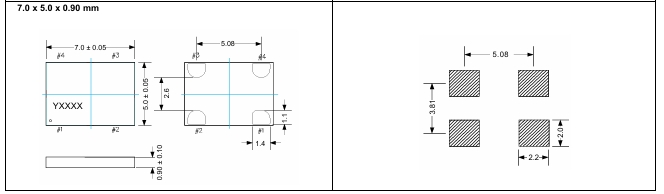

| Size/Dimension尺寸 | 7050mm | 最小包裝數MPQ： | 1000 |
.png)
SIT8208AI-82-33S-25.00000X,SiTime可編程晶振,7050陶瓷貼片晶振
SIT8208AI-82-33S-25.00000X,SiTime可編程晶振,7050陶瓷貼片晶振
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576MT | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA07-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SWS21212D48-32.768K | Suntsu Electronics, Inc. | SWS212 | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-27.000MT | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SWS1127D48-32.768K | Suntsu Electronics, Inc. | SWS112 | 32.768 kHz | - | ±20ppm | 7pF |
| SXT22418FE48-20.000M | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000M | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000MT | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000M | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-27.000M | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000MT | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000M | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576MT | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA07-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SWS21212D48-32.768K | Suntsu Electronics, Inc. | SWS212 | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-27.000MT | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SWS1127D48-32.768K | Suntsu Electronics, Inc. | SWS112 | 32.768 kHz | - | ±20ppm | 7pF |
| SXT22418FE48-20.000M | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000M | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000MT | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000M | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-27.000M | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000MT | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000M | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
