可編程晶振就是可以滿足任何頻點的晶體振蕩器，經過頻率發生器的放大或縮小后實現各種不同的總線頻率

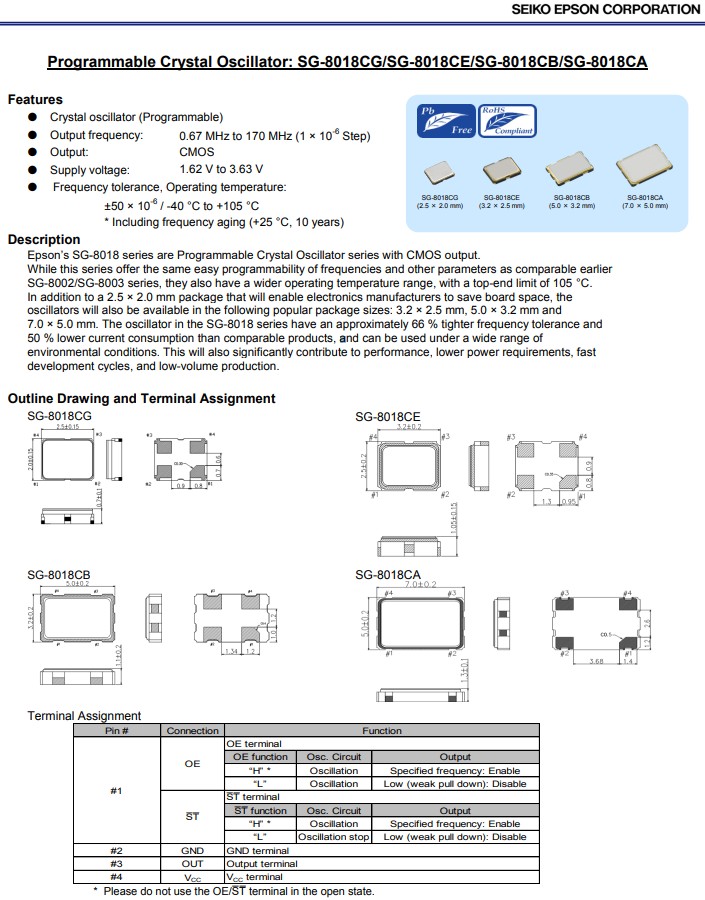

愛普生晶振SG-8018系列是CMOS輸出的可編程晶體振蕩器系列。雖然這一系列提供了與早期類似的頻率和其它參數的同樣容易的可編程性 SG-8002/SG-8003系列，它們還具有更寬的工作溫度范圍，上限為105℃。除了2.5×2.0mm封裝有助于電子制造商節省電路板空間之外，這些振蕩器還提供以下常見封裝尺寸:3.2×2.5mm、5.0×3.2mm和7.0×5.0mm可編程晶體振蕩器。SG-8018系列中的振蕩器的頻率容差約小66% 電流消耗比同類產品低50%，可在各種環境條件下使用。這也將大大有助于提高性能、降低功耗要求、加快開發周期和小批量生產。適用于5G移動通訊設備、工業控制，消費電子，智能安防，物聯網，車載導航系統，光電技術及各種變頻調速設備等通訊設備。

特征：

晶體振蕩器(可編程)

輸出頻率：0.67MHz至170MHz (1 × 10-6步進)

輸出：CMOS

電源電壓:1.62V至3.63V

頻率容差、工作溫度：50×10-6/-40℃至+105℃，*包括頻率老化(+25°C，10年)
SG-8018CA可編程晶振X1G005571001300用于車載導航系統,X1G005571002900,四腳貼片晶振

貼片晶振	頻率	型號	尺寸(長寬高)	輸出波	電源電壓
X1G005571001100	25.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571001200	25.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571001300	20.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571001400	20.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571001500	50.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571001600	50.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571001700	48.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571001800	48.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571001900	24.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002000	24.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002100	40.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002200	40.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002300	16.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002400	16.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002500	12.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002600	12.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002700	10.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002800	10.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571002900	27.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571003000	27.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V

X1G005571022800	9.216000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571022900	14.318100MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023000	24.576000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023100	125.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023200	1.544000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023300	17.280000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023400	12.500000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023500	10.240000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023600	4.096000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023700	17.179870MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023800	7.680000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571023900	81.360000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024000	39.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024100	100.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024200	13.333300MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024300	17.734475MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024400	1.485000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024500	127.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024600	10.240000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024700	33.554432MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024800	27.000000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571024900	45.158400MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571025000	40.680000MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005571025100	25.000625MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V

SG-8018CA可編程晶振X1G005571001300用于車載導航系統,X1G005571002900,四腳貼片晶振
日系的EPSON晶振SG-8018系列，是現在市場被接納度較高的一個品牌，頻率偏差50ppm范圍內。注重自主品牌的建設,掌握自主研制,定制,實現全套的晶振工藝技術流程,擁有可編程晶振技術的自主技術專利和產品線,能夠?yàn)榭蛻籼峁┤珖?guó)產化晶振解決方案.

SG-8018CA（7.0*5.0*1.3mm）

SG-8018CB（5.0*3.2*1.1mm）

SG-8018CE（3.2*2.5*1.05mm）

SG-8018CJ（2.5*2.0*0.7mm）
