- 規格型號：73758733
- 頻率：32.768KHZ
- 尺寸：3.2*1.5mm
- 產品描述：20ppm,Q-SC32S03220C5AAE,SC-32S,0.032768,3215mm,可穿戴設備，尺寸為3215mm，頻率為32.768KHZ，頻率穩定性20ppm，日本精工晶振，Seiko晶振，無源晶體，水晶振動子，音叉晶體，32.768KHZ晶振，貼片晶振，鐘表專用晶振...

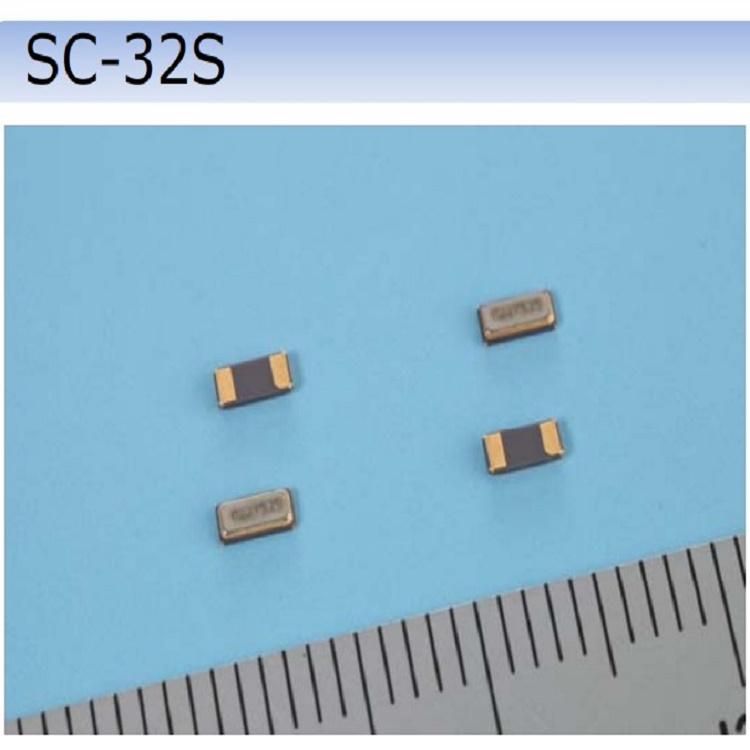

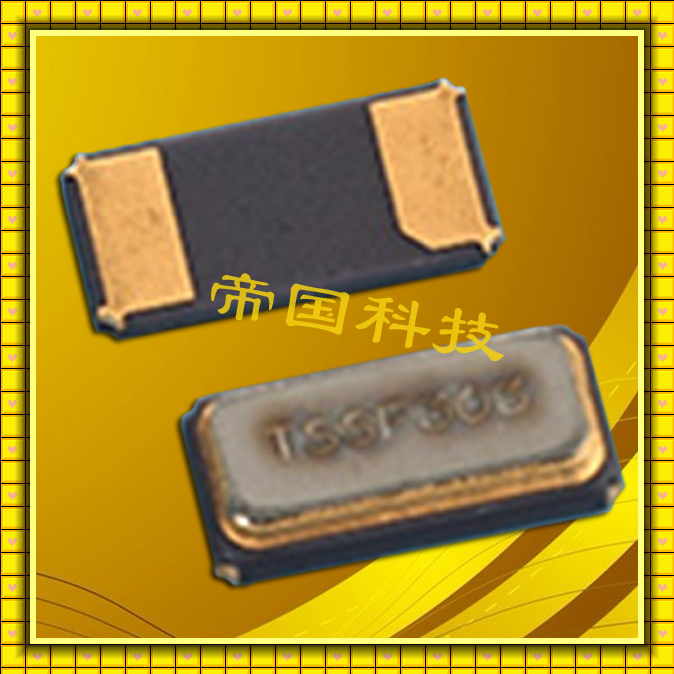

20ppm,Q-SC32S03220C5AAE,SC-32S,0.032768,3215mm,可穿戴設備
.JPG)
20ppm,Q-SC32S03220C5AAE,SC-32S,0.032768,3215mm,可穿戴設備，尺寸為3215mm，頻率為32.768KHZ，頻率穩定性20ppm，日本精工晶振，Seiko晶振，無源晶體，水晶振動子，音叉晶體，32.768KHZ晶振，貼片晶振，鐘表專用晶振，手機晶振，可穿戴設備晶振，無線模塊晶振，Q-SC32S03210C5AFE無源晶振，Q-SC32S03205C5ADE音叉晶體。
32.768K晶振產品主要應用范圍：手機，可穿戴設備，各種模塊，各種微信號時鐘等領域。20ppm,Q-SC32S03220C5AAE,SC-32S,0.032768,3215mm,可穿戴設備

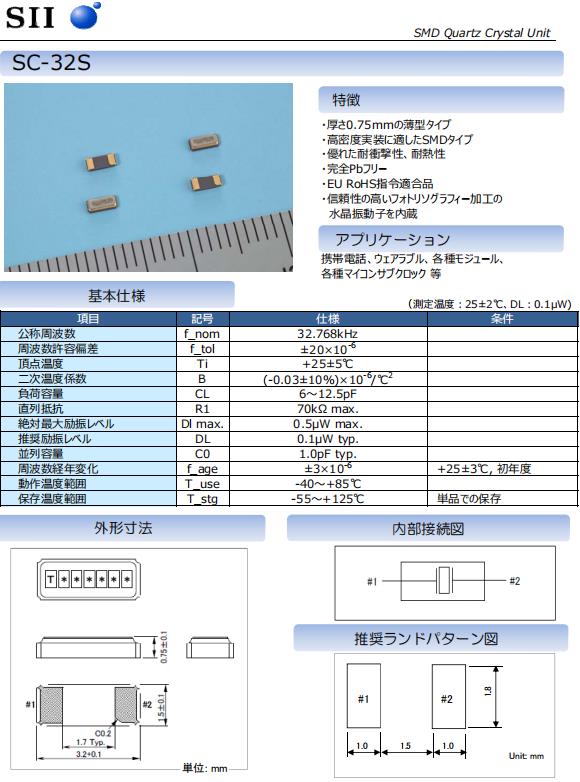

20ppm,Q-SC32S03220C5AAE,SC-32S,0.032768,3215mm,可穿戴設備 參數表
| 項目 |
 符號 |
規格 | 條件 | |||||
| 標稱頻率 | _nom | 32 .768kHz | ||||||
| 頻率容許偏差 | f_tol | ±20×10-6 | ||||||
| 頂點溫度 | Ti | +25±5℃ | ||||||
| 二次溫度保數 | B | (-0 .03±10%)×10-6/℃2 | ||||||
| 負載容量 | CL | 6~12 .5pF | ||||||
| 串聯電阻 | R1 | 70kΩ max . | ||||||
| 絕對最大激勵水平 | Dl max | 0 5μW max | ||||||
| 推薦激勵等級 | DL | 0 . 1μW typ . | ||||||
| 并行電容 | C0 | 1 .0pF typ . | ||||||
| 頻率經年變化 | f_age | ±3×10-6 | +25±3℃, 初年度 | |||||
| 工作溫度范圍 | T_use | -40?+85℃ | ||||||
| 保存溫度范圍 | T_stg | -55?+125℃ | 單品保存 | |||||

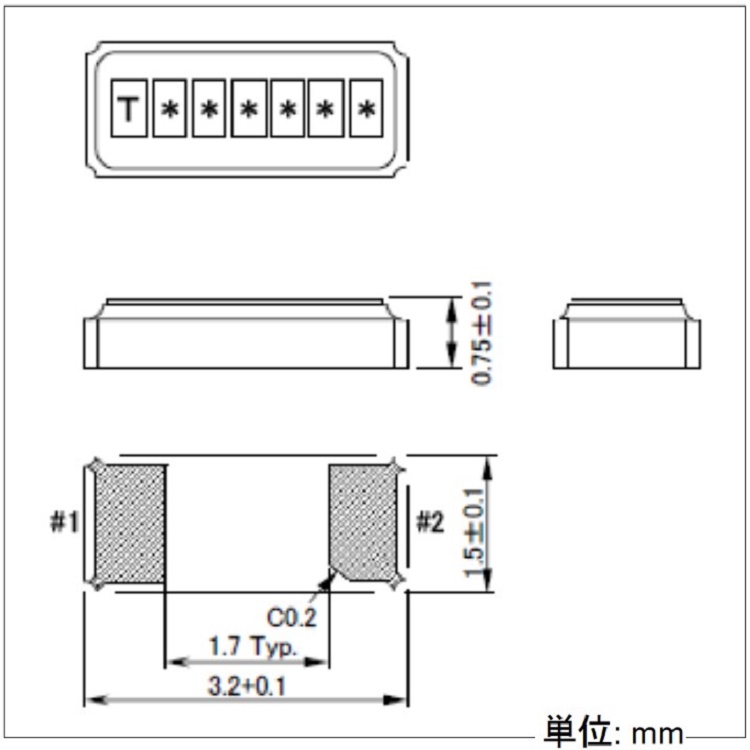

20ppm,Q-SC32S03220C5AAE,SC-32S,0.032768,3215mm,可穿戴設備 尺寸圖
Q-SC32S03220C5AAE晶振 特點：
厚度0.75mm的超薄型
·密度符合封裝的smd類型
·卓越的耐沖擊性、耐熱性
·完全無Pb
·符合歐盟RoHS法令的產品
、信賴性的フォトリソグラフィー加
晶振動?內置
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 | 頻率穩定度 |
| Q-SC20S0322070CAAF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC20S0321070CAFF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC20S0320570CADF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| VT200F-6PF20PPM | Seiko精工晶振 | VT-200-F | kHz Crystal (Tuning Fork) | 32.768kHz | - |
| VT200F-12.5PF20PPM | Seiko精工晶振 | VT-200-F | kHz Crystal (Tuning Fork) | 32.768kHz | - |
| Q-SPT7P0327620C5GF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SPT7P0327610C5GF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SPT7P0327605C5GF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC16S03220C5AAAF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC16S03210C5AAAF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC16S03205C5AAAF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC16S0322070CAAF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC16S0321070CAFF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC16S0320570CADF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC20S03220C5AAAF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC20S03210C5AAAF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC20S03205C5AAAF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SPT2S0327620C5DJ | Seiko精工晶振 | SSP-T2A-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SPT7P032762070FF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SPT7P032761070FF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SPT7P032760570FF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC32S03220C5AAE | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC32S03210C5AFE | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC32S03205C5ADE | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC32S0320570CADF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC32S0321070CAAF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC32S0322070AAAF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC32S03220C5AAAF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC32S03210C5AAFF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC32S03205C5AADF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
