- 規格型號：27218672
- 頻率：12MHz

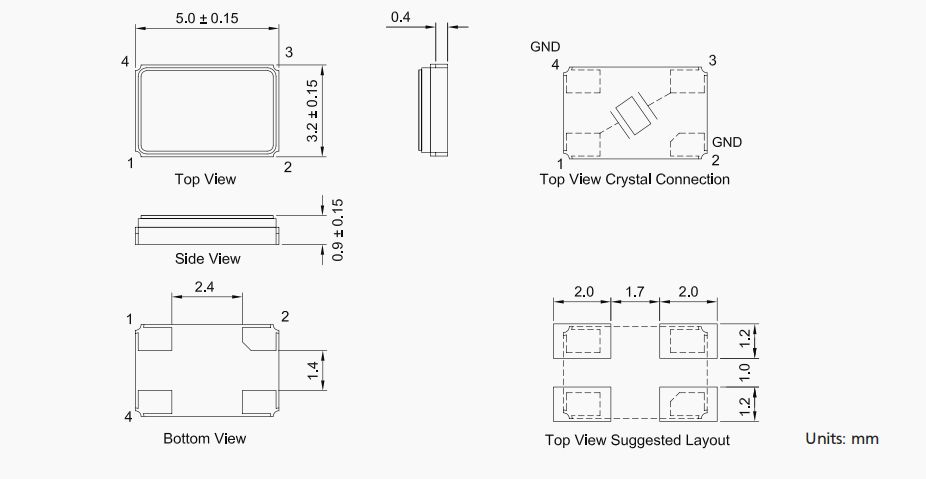

- 尺寸：5032mm
- 產品描述：TXC臺產晶體,AB-12.000MALE-T四腳晶振,汽車胎壓檢測裝置晶振，AB系列SMD，縫封晶體，5.0*3.2*0.9mm，特點，可靠的縫封陶瓷封裝。工作溫度范圍寬。惡劣環境下性能優越可靠。應用范圍:TPMS,ECM,ABS，傳感器模塊。符合ro...

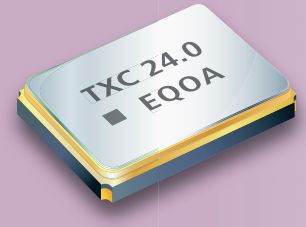

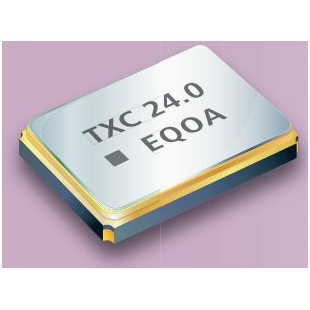

TXC臺產晶體,AB-12.000MALE-T四腳晶振,汽車胎壓檢測裝置晶振

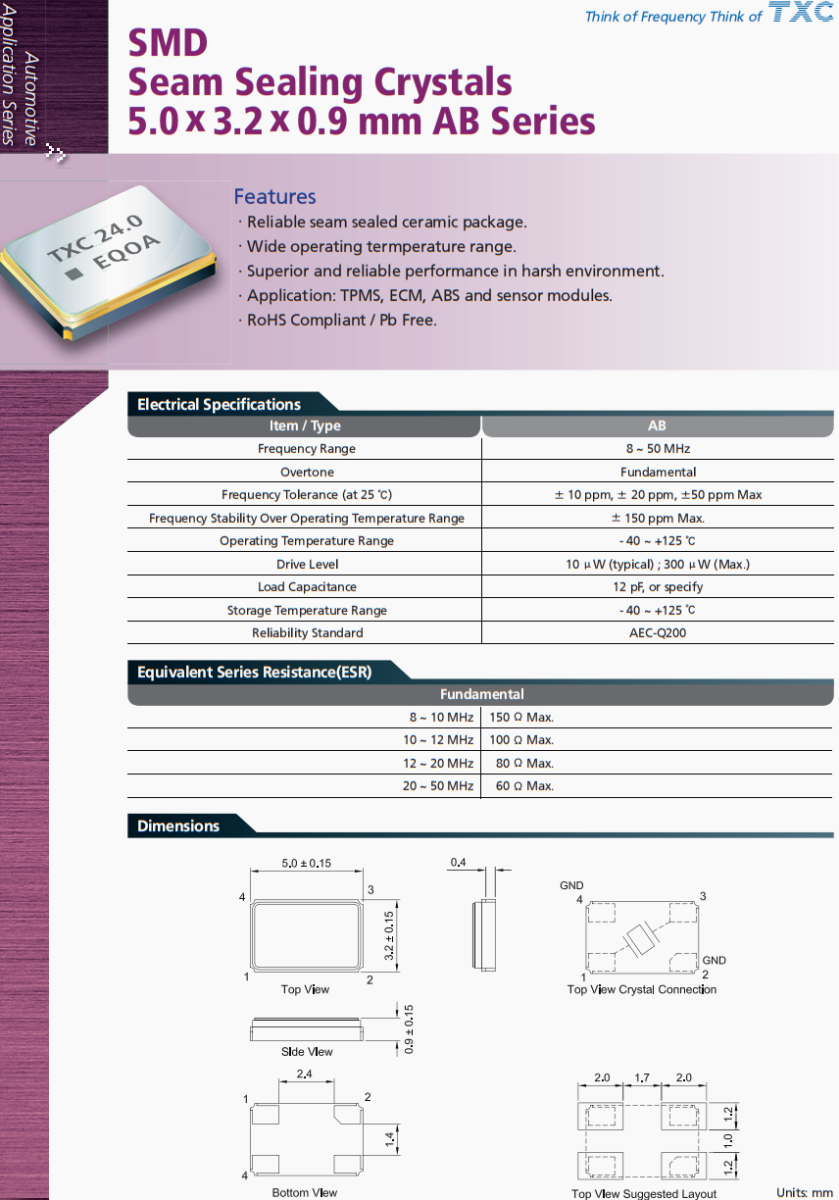

TXC臺產晶體,AB-12.000MALE-T四腳晶振,汽車胎壓檢測裝置晶振，AB系列SMD，縫封晶體，5.0* 3.2* 0.9 mm ，特點，可靠的縫封陶瓷封裝。工作溫度范圍寬。惡劣環境下性能優越可靠。應用范圍:TPMS, ECM, ABS，傳感器模塊。符合rohs標準/不含鉛臺灣TXC晶振公司，晶技晶振，無源晶振，5032晶振，AB-12.000MALE-T晶振，汽車晶振，汽車電動天窗控制系統晶振，臺灣晶振，貼片晶振，四腳晶振，石英晶振，高品質晶振，車載多媒體晶振，行車記錄儀晶振，低損耗晶振，耐高溫晶振，耐沖擊晶振。
| 型號 | AB |
| 頻率范圍 | 8 ~ 50 MHz |
| 工作模式 | Fundamental |
| 頻率容差 | ± 10 ppm, ± 20 ppm, ±50 ppm Max |
| 溫度范圍內的頻率穩定度 | ± 150 ppm Max. |
| 工作溫度 | - 40 ~ +125 ℃ |
| 驅動電平 | 10 μW (typical) ; 300 μW (Max.) |
| 負載電容 | 12 pF, or specify |
| 儲存溫度范圍 | - 40 ~ +125 ℃ |
| 可靠性標準 | AEC-Q200 |
TXC臺產晶體,AB-12.000MALE-T四腳晶振,汽車胎壓檢測裝置晶振
| TXC原廠編碼 | 生產商品牌 | Series | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| AB-16.000MALE-T | TXC晶振 | AB | 16MHz | ±150ppm | ±30ppm | 12pF |
| AB-25.000MAGE-T | TXC晶振 | AB | 25MHz | ±50ppm | ±30ppm | 12pF |
| AB-12.000MALE-T | TXC晶振 | AB | 12MHz | ±150ppm | ±30ppm | 12pF |
| AB-24.000MAGE-T | TXC晶振 | AB | 24MHz | ±50ppm | ±30ppm | 12pF |
| AB-16.000MAGE-T | TXC晶振 | AB | 16MHz | ±50ppm | ±30ppm | 12pF |
| AB-13.225625MAGE-T | TXC晶振 | AB | 13.225625MHz | ±50ppm | ±30ppm | 12pF |
| AB-8.000MAGK-T | TXC晶振 | AB | 8MHz | ±50ppm | ±30ppm | 20pF |
| AB-20.000MAHJ-T | TXC晶振 | AB | 20MHz | ±30ppm | ±30ppm | 18pF |
| AB-13.560MENE-T | TXC晶振 | AB | 13.56MHz | ±50ppm | ±10ppm | 12pF |
| AB-24.576MAGQ-T | TXC晶振 | AB | 24.576MHz | ±50ppm | ±30ppm | 10pF |
| AB-19.680MALE-T | TXC晶振 | AB | 19.68MHz | ±150ppm | ±30ppm | 12pF |
| AB-26.000MAGE-T | TXC晶振 | AB | 26MHz | ±50ppm | ±30ppm | 12pF |
| AB-37.500MAGE-T | TXC晶振 | AB | 37.5MHz | ±50ppm | ±30ppm | 12pF |
| AB-13.560MAGE-T | TXC晶振 | AB | 13.56MHz | ±50ppm | ±30ppm | 12pF |
| AB-15.360MAGE-T | TXC晶振 | AB | 15.36MHz | ±50ppm | ±30ppm | 12pF |
| AB-18.000MAGH-T | TXC晶振 | AB | 18MHz | ±50ppm | ±30ppm | 15pF |
| AB-18.432MAGE-T | TXC晶振 | AB | 18.432MHz | ±50ppm | ±30ppm | 12pF |
| AB-20.000MAGE-T | TXC晶振 | AB | 20MHz | ±50ppm | ±30ppm | 12pF |
| AB-27.000MAGE-T | TXC晶振 | AB | 27MHz | ±50ppm | ±30ppm | 12pF |
| AB-11.0592MAGQ-T | TXC晶振 | AB | 11.0592MHz | ±50ppm | ±30ppm | 10pF |
| AB-13.560MALE-T | TXC晶振 | AB | 13.56MHz | ±150ppm | ±30ppm | 12pF |
| AB-10.000MAGE-T | TXC晶振 | AB | 10MHz | ±50ppm | ±30ppm | 12pF |
| AB-12.000MAGE-T | TXC晶振 | AB | 12MHz | ±50ppm | ±30ppm | 12pF |
| AB-12.000MAME-T | TXC晶振 | AB | 12MHz | ±100ppm | ±30ppm | 12pF |
| AB-13.125MAME-T | TXC晶振 | AB | 13.125MHz | ±100ppm | ±30ppm | 12pF |
| AB-13.225625MAHE-T | TXC晶振 | AB | 13.225625MHz | ±30ppm | ±30ppm | 12pF |
| AB-13.528750MAHQ-T | TXC晶振 | AB | 13.52875MHz | ±30ppm | ±30ppm | 10pF |
| AB-13.560MAHE-T | TXC晶振 | AB | 13.56MHz | ±30ppm | ±30ppm | 12pF |
| AB-13.560MANE-T | TXC晶振 | AB | 13.56MHz | ±50ppm | ±30ppm | 12pF |
| AB-13.560MANH-T | TXC晶振 | AB | 13.56MHz | ±50ppm | ±30ppm | 15pF |
| AB-13.580MANE-T | TXC晶振 | AB | 13.58MHz | ±50ppm | ±30ppm | 12pF |
| AB-16.000MAME-T | TXC晶振 | AB | 16MHz | ±100ppm | ±30ppm | 12pF |
| AB-16.000MAPJ-T | TXC晶振 | AB | 16MHz | ±50ppm | ±30ppm | 18pF |
| AB-16.000MENQ-T | TXC晶振 | AB | 16MHz | ±50ppm | ±10ppm | 10pF |
| AB-16.000MFNE-T | TXC晶振 | AB | 16MHz | ±50ppm | ±15ppm | 12pF |
| AB-16.0132MEMQ-T | TXC晶振 | AB | 16.0132MHz | ±100ppm | ±10ppm | 10pF |
| AB-18.000MAHH-T | TXC晶振 | AB | 18MHz | ±30ppm | ±30ppm | 15pF |
| AB-18.080MEME-T | TXC晶振 | AB | 18.08MHz | ±100ppm | ±10ppm | 12pF |
| AB-19.707894MENV-T | TXC晶振 | AB | 19.707894MHz | ±50ppm | ±10ppm | 8pF |
