- 規格型號：41607673
- 頻率：11.2896MHz
- 尺寸：3225mm
- 產品描述：AM-11.2896MAGQ-T晶振,車載收音機晶振,臺產TXC晶振，AM系列貼片,特點可靠的縫密封陶瓷封裝。.工作溫度范圍寬。惡劣環境下的卓越性能和嚴格的可靠性應用領域:TPMS,ECM,ABS和傳感器模塊。體積小巧。符合RoHS標準/不含Pb...

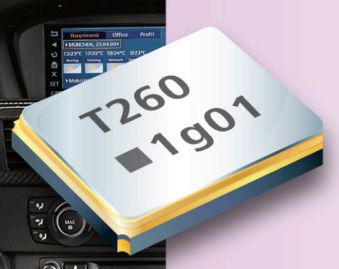

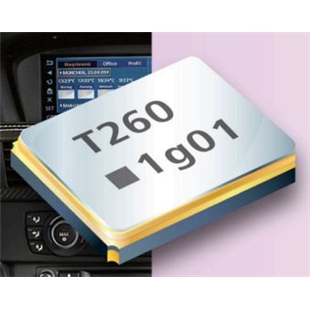

AM-11.2896MAGQ-T晶振,車載收音機晶振,臺產TXC晶振
航欄1.jpg)

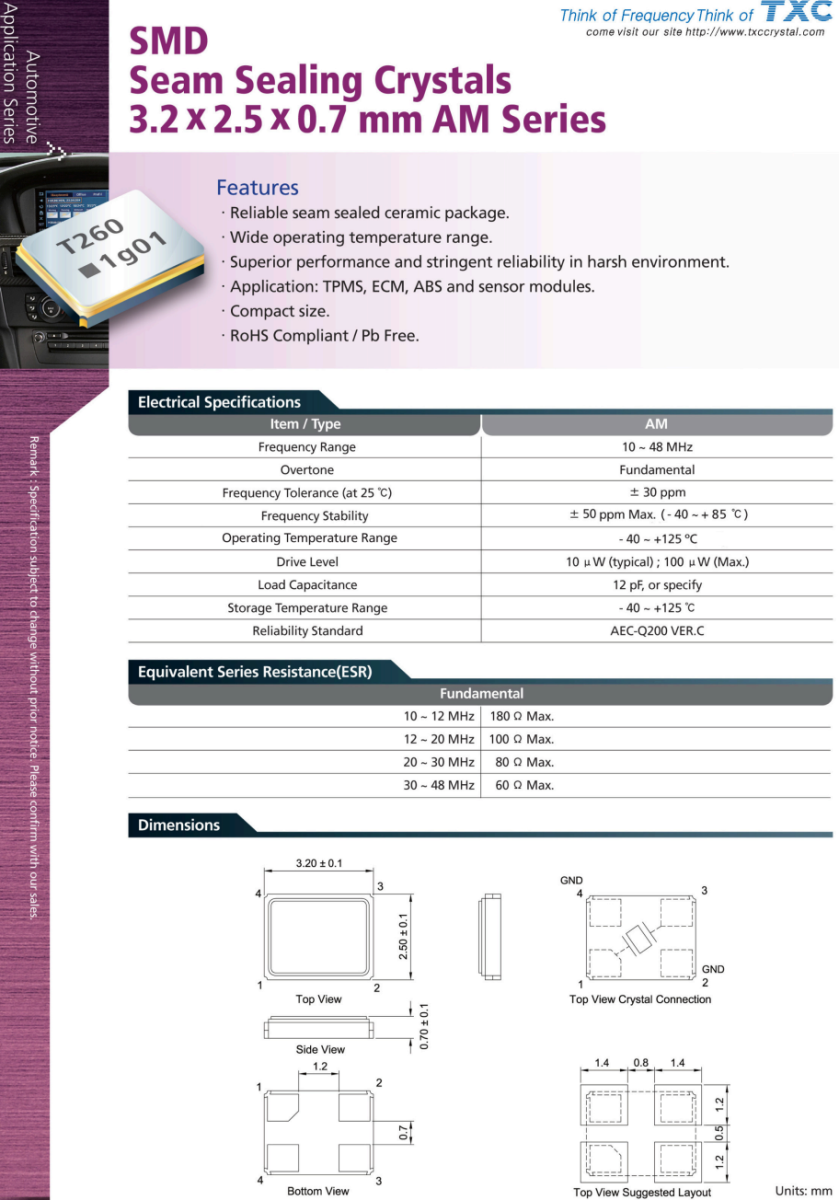

AM-11.2896MAGQ-T晶振,車載收音機晶振,臺產TXC晶振，AM系列貼片,特點可靠的縫密封陶瓷封裝。.工作溫度范圍寬。惡劣環境下的卓越性能和嚴格的可靠性應用領域: TPMS,ECM,ABS和傳感器模塊。體積小巧。符合RoHS標準/不含Pb。接縫密封晶體，3.2 x2.5 x0.7毫米.臺灣TXC晶振,AM-11.2896MAGQ-T晶振,3225晶振，寬溫，汽車級晶振，無源晶振,無源晶振,石英晶體諧振器,四腳貼片晶振,超小型晶振，臺灣晶振,小型汽車晶振，車載收音機晶振，實時時鐘晶振，藍牙模塊晶振
| 型號 | AM |
| 頻率范圍 | 10 ~ 48 MHz |
| 工作模式 | Fundamental |
| 頻率容差 | ±30 ppm |
| 溫度范圍內的頻率穩定度 | ±50 ppm Max. |
| 工作溫度 | - 40 ~ +125 ℃ |
| 驅動電平 | 10 μW (typical) ; 100 μW (Max.) |
| 負載電容 | 12 pF, or specify |
| 儲存溫度范圍 | - 40 ~ +125 ℃ |
| 可靠性標準 | AEC-Q200 VER.C |
| TXC原廠編碼 | 生產商品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| AM-12.000MAGE-T | TXC晶振 | AM | 12MHz | ±50ppm | ±30ppm | 12pF |
| AM-48.000MAGE-T | TXC晶振 | AM | 48MHz | ±50ppm | ±30ppm | 12pF |
| AM-16.000MAGE-T | TXC晶振 | AM | 16MHz | ±50ppm | ±30ppm | 12pF |
| AM-16.9344MAGV-T | TXC晶振 | AM | 16.9344MHz | ±50ppm | ±30ppm | 8pF |
| AM-16.000MALE-T | TXC晶振 | AM | 16MHz | ±150ppm | ±30ppm | 12pF |
| AM-28.224MAGQ-T | TXC晶振 | AM | 28.224MHz | ±50ppm | ±30ppm | 10pF |
| AM16070006 | TXC晶振 | AM | 16MHz | - | - | 10pF |
| AM-40.000MANE-T | TXC晶振 | AM | 40MHz | ±50ppm | ±30ppm | 12pF |
| AM-40.000MENE-T | TXC晶振 | AM | 40MHz | ±50ppm | ±10ppm | 12pF |
| AM-16.000MANQ-T | TXC晶振 | AM | 16MHz | ±50ppm | ±30ppm | 10pF |
| AM-24.305MAHY-T | TXC晶振 | AM | 24.305MHz | ±30ppm | ±30ppm | 7pF |
| AM-20.000MANE-T | TXC晶振 | AM | 20MHz | ±50ppm | ±30ppm | 12pF |
| AM-24.000MAGV-T | TXC晶振 | AM | 24MHz | ±50ppm | ±30ppm | 8pF |
| AM-24.000MAGE-T | TXC晶振 | AM | 24MHz | ±50ppm | ±30ppm | 12pF |
| AM-24.576MAGE-T | TXC晶振 | AM | 24.576MHz | ±50ppm | ±30ppm | 12pF |
| AM-11.2896MAGQ-T | TXC晶振 | AM | 11.2896MHz | ±50ppm | ±30ppm | 10pF |
| AM-14.31818MAGQ-T | TXC晶振 | AM | 14.31818MHz | ±50ppm | ±30ppm | 10pF |
| AM-40.000MAGE-T | TXC晶振 | AM | 40MHz | ±50ppm | ±30ppm | 12pF |
| AM-18.432MAGQ-T | TXC晶振 | AM | 18.432MHz | ±50ppm | ±30ppm | 10pF |
| AM-20.000MAGE-T | TXC晶振 | AM | 20MHz | ±50ppm | ±30ppm | 12pF |
| AM-18.080MALV-T | TXC晶振 | AM | 18.08MHz | ±150ppm | ±30ppm | 8pF |
| AM-26.000MAGE-T | TXC晶振 | AM | 26MHz | ±50ppm | ±30ppm | 12pF |
| AM-27.000MAGE-T | TXC晶振 | AM | 27MHz | ±50ppm | ±30ppm | 12pF |
| AM-13.560MAGE-T | TXC晶振 | AM | 13.56MHz | ±50ppm | ±30ppm | 12pF |
| AM-28.63636MAGK-T | TXC晶振 | AM | 28.63636MHz | ±50ppm | ±30ppm | 20pF |
| AM-33.333MAGV-T | TXC晶振 | AM | 33.333MHz | ±50ppm | ±30ppm | 8pF |
| AM-12.000MAHE-T | TXC晶振 | AM | 12MHz | ±30ppm | ±30ppm | 12pF |
| AM-12.000MEIE-T | TXC晶振 | AM | 12MHz | ±20ppm | ±10ppm | 12pF |
| AM-13.000MEHQ-T | TXC晶振 | AM | 13MHz | ±30ppm | ±10ppm | 10pF |
| AM-13.560MDHE-T | TXC晶振 | AM | 13.56MHz | ±30ppm | ±20ppm | 12pF |
| AM-13.560MENQ-T | TXC晶振 | AM | 13.56MHz | ±50ppm | ±10ppm | 10pF |
| AM-16.000MAME-T | TXC晶振 | AM | 16MHz | ±100ppm | ±30ppm | 12pF |
| AM-16.000MAPY-T | TXC晶振 | AM | 16MHz | ±50ppm | ±30ppm | 7pF |
| AM-16.000MDQC-T | TXC晶振 | AM | 16MHz | ±30ppm | ±20ppm | 9pF |
| AM-16.000MEIC-T | TXC晶振 | AM | 16MHz | ±20ppm | ±10ppm | 9pF |
| AM-16.000MEPV-T | TXC晶振 | AM | 16MHz | ±50ppm | ±10ppm | 8pF |
| AM-16.9344MAHV-T | TXC晶振 | AM | 16.9344MHz | ±30ppm | ±30ppm | 8pF |
| AM-18.080MEMV-T | TXC晶振 | AM | 18.08MHz | ±100ppm | ±10ppm | 8pF |
| AM-24.000MAGJ-T | TXC晶振 | AM | 24MHz | ±50ppm | ±30ppm | 18pF |
| AM-24.5454MAHK-T | TXC晶振 | AM | 24.5454MHz | ±30ppm | ±30ppm | 20pF |
| AM-24.5454MAQE-T | TXC晶振 | AM | 24.5454MHz | ±30ppm | ±30ppm | 12pF |
| AM-24.5454MAQQ-T | TXC晶振 | AM | 24.5454MHz | ±30ppm | ±30ppm | 10pF |
| AM-24.576MAHE-T | TXC晶振 | AM | 24.576MHz | ±30ppm | ±30ppm | 12pF |
| AM-25.000MEIV-T | TXC晶振 | AM | 25MHz | ±20ppm | ±10ppm | 8pF |
| AM-25.000MEPQ-T | TXC晶振 | AM | 25MHz | ±50ppm | ±10ppm | 10pF |
| AM-25.000MFIQ-T | TXC晶振 | AM | 25MHz | ±20ppm | ±15ppm | 10pF |
| AM-26.000MDIE-T | TXC晶振 | AM | 26MHz | ±20ppm | ±20ppm | 12pF |
| AM-26.000MEIQ-T | TXC晶振 | AM | 26MHz | ±20ppm | ±10ppm | 10pF |
| AM-26.000MEIV-T | TXC晶振 | AM | 26MHz | ±20ppm | ±10ppm | 8pF |
| AM-26.000MENV-T | TXC晶振 | AM | 26MHz | ±50ppm | ±10ppm | 8pF |
| AM-27.000MAQE-T | TXC晶振 | AM | 27MHz | ±30ppm | ±30ppm | 10pF |
| AM-27.000MEPV-T | TXC晶振 | AM | 27MHz | ±50ppm | ±10ppm | 8pF |
| AM-28.224MDGQ-T | TXC晶振 | AM | 28.224MHz | ±50ppm | ±20ppm | 10pF |
| AM-28.6363MBPH-T | TXC晶振 | AM | 28.6363MHz | ±50ppm | ±50ppm | 15pF |
| AM-40.000MDGE-T | TXC晶振 | AM | 40MHz | ±50ppm | ±20ppm | 12pF |
| AM-48.000MAGV-T | TXC晶振 | AM | 48MHz | ±50ppm | ±30ppm | 8pF |
| AM-48.000MBFQ-T | TXC晶振 | AM | 48MHz | ±100ppm | ±50ppm | 10pF |
| AM-16.000MAHE-T | TXC晶振 | AM | 16MHz | ±30ppm | ±30ppm | 12pF |
| AM-16.000MDNE-T | TXC晶振 | AM | 16MHz | ±50ppm | ±30ppm | 12pF |
| AM-20.000MALI-T | TXC晶振 | AM | 20MHz | ±150ppm | ±30ppm | 16pF |
| AM-20.000MAPE-T | TXC晶振 | AM | 20MHz | ±50ppm | ±30ppm | 12pF |
| AM-22.5792MALI-T | TXC晶振 | AM | 22.579MHz | ±150ppm | ±30ppm | 16pF |
| AM-25.000MALI-T | TXC晶振 | AM | 25MHz | ±150ppm | ±30ppm | 16pF |
| AM-25.000MFNI-T | TXC晶振 | AM | 25MHz | ±50ppm | ±30ppm | 16pF |
| AM-30.000MAGE-T | TXC晶振 | AM | 30MHz | ±50ppm | ±30ppm | 12pF |
| AM27070601 | TXC晶振 | AM | 27MHz | ±30ppm | ±20ppm | 12pF |
| AM-16.000MFNE-T | TXC晶振 | AM | 16MHz | ±50ppm | ±15ppm | 12pF |
| AM-26.000MEDV-T | TXC晶振 | AM | 26MHz | ±25ppm | ±10ppm | 8pF |
| AM-40.000MEEQ-T | TXC晶振 | AM | 40MHz | ±50ppm | ±10ppm | 10pF |
| AM-9.84375MAGE-T | TXC晶振 | AM | 9.84375MHz | ±50ppm | ±30ppm | 12pF |
| AM26000008 | TXC晶振 | AM | 26MHz | ±16ppm | ±10ppm | 8pF |
| AM26060001 | TXC晶振 | AM | 26MHz | ±10ppm | ±7ppm | 8pF |
| AM48070004 | TXC晶振 | AM | 48MHz | ±20ppm | ±10ppm | 4.7pF |
| AM10000001 | TXC晶振 | AM | 10MHz | ±50ppm | ±10ppm | 10pF |
| AM12000001 | TXC晶振 | AM | 12MHz | ±30ppm | ±30ppm | 12pF |
| AM16000006 | TXC晶振 | AM | 16MHz | ±100ppm | ±30ppm | 12pF |
| AM24070001 | TXC晶振 | AM | 24MHz | ±50ppm | ±30ppm | 12pF |
| AM25070002 | TXC晶振 | AM | 25MHz | ±50ppm | ±15ppm | 16pF |
| AM25090001 | TXC晶振 | AM | 25MHz | ±50ppm | ±10ppm | 10pF |
