規格型號：18610227
頻率：26M
尺寸：3225mm
PDF
產品描述：1XTW26000MAA,KDS日產晶振,DSB321SDN有源溫補晶振,具備極強的極端環境適應能力:除寬溫域穩定工作外,還通過了振動測試與沖擊測試,能耐受工業車間的機械振動,車載環境的顛簸沖擊,避免因外部物理干擾導致的性能衰減.

1XTW26000MAA,KDS日產晶振,DSB321SDN有源溫補晶振

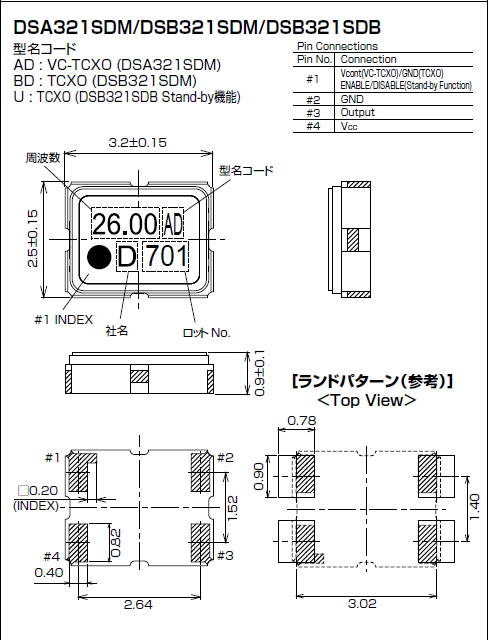

1XTW26000MAA是日本KDS(大真空株式會社)原廠研發的DSB321SDN系列有源溫補晶振(TCXO振蕩器),核心輸出頻率精準鎖定26.000MHz,憑借有源驅動與溫度補償雙重特性,解決了傳統無源晶振受溫度影響大的痛點.作為純?nèi)债a(chǎn)產品,其生產全程遵循KDS嚴苛的車規級與工業級品質管控體系,從石英晶體晶片的精密切割,溫補電路的集成,到最終封裝測試,每一步均經過多輪可靠性驗證.產品采用3225小型封裝(3.2mm×2.5mm),在-40℃~+85℃寬溫域內,頻率穩定性可控制在±0.5ppm以內,為對時鐘精度要求極高的設備提供穩定基準,是兼顧有源溫補性能與日產品質的核心之選.

1XTW26000MAA,KDS日產晶振,DSB321SDN有源溫補晶振

原廠型號 Originalmodel：	1XTW26000MAA	品牌brand：	KDS
Manufacturer品牌	KDS	OperatingTemperature溫度	‐40°C to 85°C
Series型號	DSB321SDN	Current-Supply(Max)	-
Type類型	TCXO	PackageHeight高度	0.9mm
Frequency頻率	26M	Termination 腳位	4-pad
輸出方式 Output：	CMOS有源輸出晶振	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	1.8V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±0.5PPm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	3225mm	最小包裝數MPQ：	3000

1XTW26000MAA,KDS日產晶振,DSB321SDN有源溫補晶振
