規格型號：29290404
頻率：12.8 MHz
尺寸：5032mm
PDF
產品描述：XNCLH12M800CHJB3P0,3.3V壓電晶振,日產村田晶振,憑借12.8MHz的高頻特性,3.3V的通用電壓以及優異的穩定性與低功耗優勢,具備廣泛的應用適配能力,可滿足多領域電子設備的時鐘需求,成為不同場景下的"時鐘核心".

XNCLH12M800CHJB3P0,3.3V壓電晶振,日產村田晶振
XNCLH12M800CHJB3P0是日本村田(Murata)集團原廠精心研發生產的高頻壓電晶振產品,其核心參數體系深度聚焦工業級電子設備對時鐘信號穩定性的嚴苛需求,在同類晶振產品中具備顯著的規格優勢.從關鍵電氣參數來看,其標稱頻率精準鎖定為12.8MHz,該頻率值經過村田精密校準技術處理,可有效避免出廠后因環境因素導致的頻率偏移,同時這一頻率能夠完美匹配多數嵌入式處理器(如ARMCortex-M系列),物聯網無線通信模塊(如LoRa,NB-IoT模組)的時鐘需求；供電電壓采用寬適配性的3.3V直流規格,電壓容忍范圍控制在±5%以內,不僅兼容主流嵌入式系統,物聯網應用晶振模塊的標準供電電路,還能在電壓小幅波動的工業場景中保持穩定運行,避免因供電不穩導致的設備死機或數據傳輸錯誤.在封裝設計上,該晶振嚴格遵循村田小型化,高集成度的產品設計理念,具體封裝尺寸符合村田標準化的貼片封裝規格,整體體積小巧輕薄,能夠輕松適配高密度PCB(印制電路板)布局場景--無論是消費電子中的多層PCB板,還是工業控制設備中元器件密集的電路板,都能靈活嵌入,有效節省PCB板的空間資源.同時,從生產流程管控來看,每一顆XNCLH12M800CHJB3P0晶振均經過村田原廠標準化的生產流程加工,從晶片切割,電極制作到封裝測試,每個環節都配備高精度檢測設備(如頻率測試儀,電壓穩定性檢測儀),確保每顆晶振的頻率偏差(常溫下典型值可控制在±10ppm以內),電壓容忍度,負載電容(典型值適配12pF或20pF,可根據應用需求調整)等基礎參數均嚴格符合村田嚴苛的出廠標準,最終為各類電子設備提供穩定,精準的時鐘信號源頭,保障設備核心功能的正常運行.

XNCLH12M800CHJB3P0,3.3V壓電晶振,日產村田晶振

Original model 原廠編碼	XNCLH12M800CHJB3P0
Manufacturer 品牌	Murata村田晶振
Part Series 型號	XNCLH
Type 類型	TCXO
Frequency 頻率	12.8 MHz
Output Type 輸出方式	CMOS
Supply Voltage 電壓	3.3V
Frequency Stability 頻率穩定性	±280ppb
Operating Temperature 工作溫度	-40°C ~ 85°C

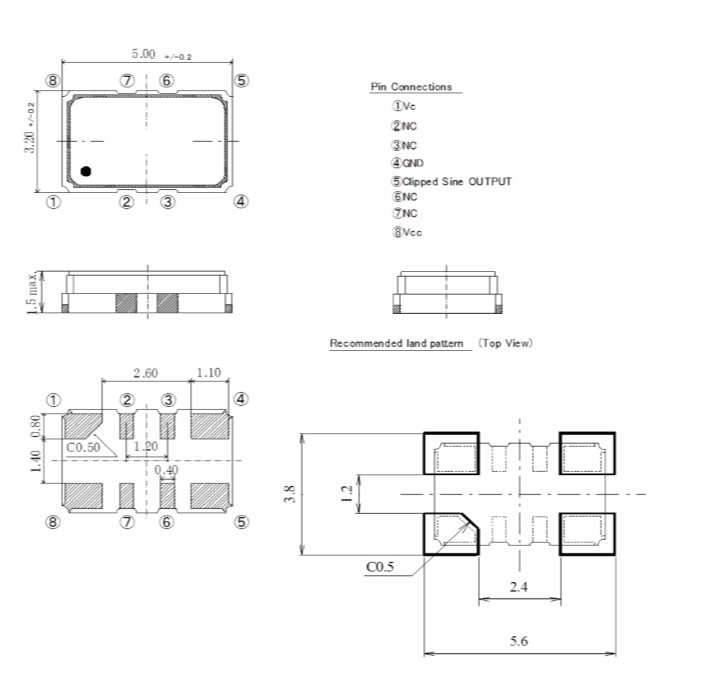

Package Size 包裝尺寸	5032貼片晶振
Package Height 厚度	1.50mm
Termination 腳位	8 pads
Package Type 封裝類型	8-SMD
Lead Free 無鉛	Yes
Mounting Style 安裝方式	Surface Mount
Packaging 包裝	Tape and Reel

XNCLH12M800CHJB3P0,3.3V壓電晶振,日產村田晶振

XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms	-30°C~85°C
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	30 MHz	±20ppm	±20ppm	6pF	100 Ohms	-30°C~85°C
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms	-30°C~85°C
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	16 MHz	±40ppm	±40ppm	8pF	200 Ohms	-30°C~85°C
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	27 MHz	±35ppm	±15ppm	6pF	80 Ohms	-40°C~125°C
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	26 MHz	±35ppm	±15ppm	8pF	80 Ohms	-40°C~125°C
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	20 MHz	±45ppm	±30ppm	6pF	150 Ohms	-40°C~125°C
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±20ppm	8pF	120 Ohms	-40°C~125°C
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	80 Ohms	-30°C~85°C
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	26 MHz	±20ppm	±20ppm	6pF	150 Ohms	-30°C~85°C
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	32 MHz	±15ppm	±10ppm	9pF	40 Ohms	-40°C~85°C
XRCGB26M000F1H89R0	Murata村田晶振	XRCGB	26 MHz	±10ppm	±10ppm	5pF	60 Ohms	-30°C~85°C
XRCGE24M545FBA1BR0	Murata村田晶振	XRCGE	24.545452 MHz	±35ppm	±15ppm	8pF	100 Ohms	-40°C~125°C
XRCGB40M000F0Z00R0	Murata村田晶振	XRCGB	40 MHz	±100ppm	±100ppm	6pF	100 Ohms	-40°C~100°C
XRCGB38M400F1S1CR0	Murata村田晶振	XRCGB	38.4 MHz	±10ppm	±10ppm	10pF	60 Ohms	-30°C~85°C
XRCGB24M000F1SBAR0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±10ppm	6pF	70 Ohms	-40°C~105°C
XRCGE30M000F3A1AR0	Murata村田晶振	XRCGE	30 MHz	±45ppm	±30ppm	6pF	70 Ohms	-40°C~125°C
XRCGE30M000F3A1BR0	Murata村田晶振	XRCGE	30 MHz	±45ppm	±30ppm	8pF	70 Ohms	-40°C~125°C
XRCGE50M000F3A1BR0	Murata村田晶振	XRCGE	50 MHz	±45ppm	±30ppm	8pF	50 Ohms	-40°C~125°C
XRCGB38M400F1S2FR0	Murata村田晶振	XRCGB	38.4 MHz	±20ppm	±10ppm	6pF	60 Ohms	-40°C~105°C
XRCGB32M000F5N10R0	Murata村田晶振	XRCGB	32 MHz	±30ppm	±50ppm	6pF	100 Ohms	-40°C~85°C
XRCGB25M000FAN00R0	Murata村田晶振	XRCGB	25 MHz	±25ppm	±25ppm	6pF	150 Ohms	-10°C~70°C
XRCGB25M000F0L00R0	Murata村田晶振	XRCGB	25 MHz	±50ppm	±100ppm	6pF	150 Ohms	-30°C~85°C
XRCGB40M000F4M00R0	Murata村田晶振	XRCGB	40 MHz	±40ppm	±45ppm	6pF	100 Ohms	-30°C~85°C
XRCGB27M000FAN16R0	Murata村田晶振	XRCGB	27 MHz	±25ppm	±25ppm	12pF	90 Ohms	-10°C~70°C
XRCGB26M000F0L00R0	Murata村田晶振	XRCGB	26 MHz	±50ppm	±100ppm	6pF	150 Ohms	-30°C~85°C
XRCGB27M120F2P11R0	Murata村田晶振	XRCGB	27.12 MHz	±20ppm	±20ppm	6pF	80 Ohms	-30°C~85°C
XRCGB32M000F2P10R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	70 Ohms	-30°C~85°C
XRCGB30M000F3M00R0	Murata村田晶振	XRCGB	30 MHz	±40ppm	±30ppm	6pF	100 Ohms	-30°C~85°C
XRCGB32M000F3N00R0	Murata村田晶振	XRCGB	32 MHz	±25ppm	±30ppm	6pF	100 Ohms	-20°C~85°C
XRCGB24M000F3M26R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	120 Ohms	-40°C~85°C
XRCGB32M000F3M01R0	Murata村田晶振	XRCGB	32 MHz	±40ppm	±30ppm	8pF	100 Ohms	-30°C~85°C
XRCGB25M000F3N00R0	Murata村田晶振	XRCGB	25 MHz	±30ppm	±30ppm	6pF	150 Ohms	-20°C~85°C
XRCGB27M000F3M00R0	Murata村田晶振	XRCGB	27 MHz	±40ppm	±30ppm	6pF	150 Ohms	-30°C~85°C
XRCGB40M000F1S1BR0	Murata村田晶振	XRCGB	40 MHz	±10ppm	±10ppm	8pF	50 Ohms	-30°C~85°C
XRCHA16M000F0A01R0	Murata村田晶振	XRCHA	16 MHz	±100ppm	±100ppm	8pF	100 Ohms	-40°C~125°C
