規格型號：76065006
頻率：40 MHz
尺寸：5032mm
PDF
產品描述：XNCLH40M000CHJA4P0,Murata村田晶振,TCXO溫補晶振,內置高效溫度補償電路,通過實時監測環境溫度并動態調整振蕩電路參數,實現快速溫度響應,同時具備低功耗特性,可有效降低設備整體功耗,延長便攜式設備續航時間.

XNCLH40M000CHJA4P0,Murata村田晶振,TCXO溫補晶振
Murata村田TCXO溫補晶振XNCLH40M000CHJA4P0以高穩定性為核心設計目標,具備40MHz的標準輸出頻率,為各類電子設備提供精準的時鐘信號源.該產品采用村田自研的溫補技術,在-40℃~+85℃的寬溫工作范圍內,可實現極低的頻率偏差,典型頻率穩定度控制在±0.1ppm以內,有效規避溫度波動對設備時鐘精度的影響.同時,其輸出形式支持LVCMOS電平,供電電壓兼容2.5V~3.3V寬范圍,適配多數工業及消費電子設備的供電需求,引腳布局遵循行業通用封裝標準,便于自動化焊接與電路集成.備優異的抗電磁干擾(EMI)能力,通過優化內部電路布局與屏蔽設計,減少對外輻射干擾,且能抵御外部電磁信號影響,滿足工業級電磁兼容性(EMC)標準,適用于醫療設備,航空航天輔助設備等對可靠性要求極高的領域.

XNCLH40M000CHJA4P0,Murata村田晶振,TCXO溫補晶振

Original model 原廠編碼	XNCLH40M000CHJA4P0
Manufacturer 品牌	Murata村田晶振
Part Series 型號	XNCLH
Type 類型	TCXO
Frequency 頻率	40 MHz
Output Type 輸出方式	CMOS
Supply Voltage 電壓	3.3V
Frequency Stability 頻率穩定性	±280ppb
Operating Temperature 工作溫度	-40°C ~ 85°C

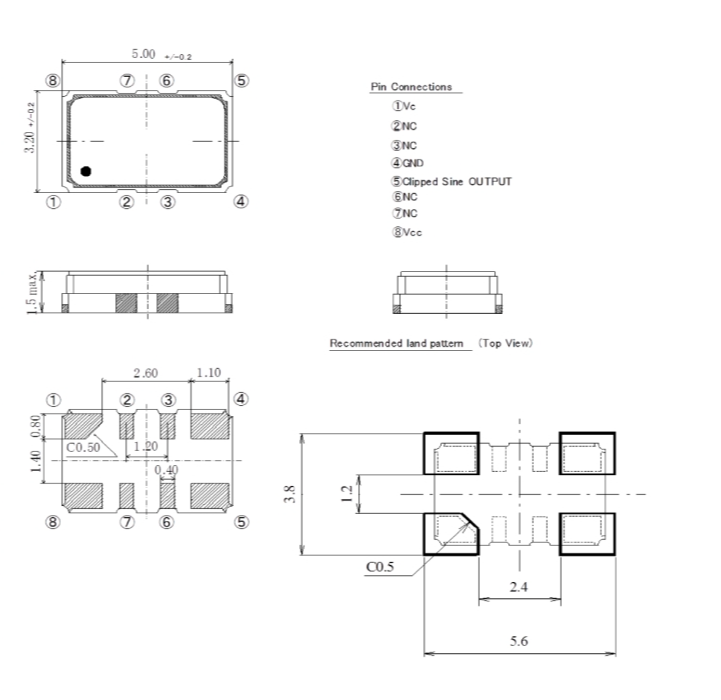

Package Size 包裝尺寸	5.00mm x 3.20mm
Package Height 厚度	1.50mm
Termination 腳位	8 pads
Package Type 封裝類型	8-SMD
Lead Free 無鉛	Yes
Mounting Style 安裝方式	Surface Mount
Packaging 包裝	Tape and Reel

XNCLH40M000CHJA4P0,Murata村田晶振,TCXO溫補晶振

XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms	-30°C~85°C
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	30 MHz	±20ppm	±20ppm	6pF	100 Ohms	-30°C~85°C
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms	-30°C~85°C
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	16 MHz	±40ppm	±40ppm	8pF	200 Ohms	-30°C~85°C
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	27 MHz	±35ppm	±15ppm	6pF	80 Ohms	-40°C~125°C
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	26 MHz	±35ppm	±15ppm	8pF	80 Ohms	-40°C~125°C
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	20 MHz	±45ppm	±30ppm	6pF	150 Ohms	-40°C~125°C
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±20ppm	8pF	120 Ohms	-40°C~125°C
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	80 Ohms	-30°C~85°C
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	26 MHz	±20ppm	±20ppm	6pF	150 Ohms	-30°C~85°C
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	32 MHz	±15ppm	±10ppm	9pF	40 Ohms	-40°C~85°C
XRCGB26M000F1H89R0	Murata村田晶振	XRCGB	26 MHz	±10ppm	±10ppm	5pF	60 Ohms	-30°C~85°C
XRCGE24M545FBA1BR0	Murata村田晶振	XRCGE	24.545452 MHz	±35ppm	±15ppm	8pF	100 Ohms	-40°C~125°C
XRCGB40M000F0Z00R0	Murata村田晶振	XRCGB	40 MHz	±100ppm	±100ppm	6pF	100 Ohms	-40°C~100°C
XRCGB38M400F1S1CR0	Murata村田晶振	XRCGB	38.4 MHz	±10ppm	±10ppm	10pF	60 Ohms	-30°C~85°C
XRCGB24M000F1SBAR0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±10ppm	6pF	70 Ohms	-40°C~105°C
XRCGE30M000F3A1AR0	Murata村田晶振	XRCGE	30 MHz	±45ppm	±30ppm	6pF	70 Ohms	-40°C~125°C
XRCGE30M000F3A1BR0	Murata村田晶振	XRCGE	30 MHz	±45ppm	±30ppm	8pF	70 Ohms	-40°C~125°C
XRCGE50M000F3A1BR0	Murata村田晶振	XRCGE	50 MHz	±45ppm	±30ppm	8pF	50 Ohms	-40°C~125°C
XRCGB38M400F1S2FR0	Murata村田晶振	XRCGB	38.4 MHz	±20ppm	±10ppm	6pF	60 Ohms	-40°C~105°C
XRCGB32M000F5N10R0	Murata村田晶振	XRCGB	32 MHz	±30ppm	±50ppm	6pF	100 Ohms	-40°C~85°C
XRCGB25M000FAN00R0	Murata村田晶振	XRCGB	25 MHz	±25ppm	±25ppm	6pF	150 Ohms	-10°C~70°C
XRCGB25M000F0L00R0	Murata村田晶振	XRCGB	25 MHz	±50ppm	±100ppm	6pF	150 Ohms	-30°C~85°C
XRCGB40M000F4M00R0	Murata村田晶振	XRCGB	40 MHz	±40ppm	±45ppm	6pF	100 Ohms	-30°C~85°C
XRCGB27M000FAN16R0	Murata村田晶振	XRCGB	27 MHz	±25ppm	±25ppm	12pF	90 Ohms	-10°C~70°C
XRCGB26M000F0L00R0	Murata村田晶振	XRCGB	26 MHz	±50ppm	±100ppm	6pF	150 Ohms	-30°C~85°C
XRCGB27M120F2P11R0	Murata村田晶振	XRCGB	27.12 MHz	±20ppm	±20ppm	6pF	80 Ohms	-30°C~85°C
XRCGB32M000F2P10R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	70 Ohms	-30°C~85°C
XRCGB30M000F3M00R0	Murata村田晶振	XRCGB	30 MHz	±40ppm	±30ppm	6pF	100 Ohms	-30°C~85°C
XRCGB32M000F3N00R0	Murata村田晶振	XRCGB	32 MHz	±25ppm	±30ppm	6pF	100 Ohms	-20°C~85°C
XRCGB24M000F3M26R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	120 Ohms	-40°C~85°C
XRCGB32M000F3M01R0	Murata村田晶振	XRCGB	32 MHz	±40ppm	±30ppm	8pF	100 Ohms	-30°C~85°C
XRCGB25M000F3N00R0	Murata村田晶振	XRCGB	25 MHz	±30ppm	±30ppm	6pF	150 Ohms	-20°C~85°C
XRCGB27M000F3M00R0	Murata村田晶振	XRCGB	27 MHz	±40ppm	±30ppm	6pF	150 Ohms	-30°C~85°C
XRCGB40M000F1S1BR0	Murata村田晶振	XRCGB	40 MHz	±10ppm	±10ppm	8pF	50 Ohms	-30°C~85°C
XRCHA16M000F0A01R0	Murata村田晶振	XRCHA	16 MHz	±100ppm	±100ppm	8pF	100 Ohms	-40°C~125°C
