規格型號：58262957
頻率：19.2 MHz
尺寸：5032mm
PDF
產品描述：XTCLH19M200TJJC3P2,VCTCXO晶振,削峰正弦波晶振,憑借溫補+壓控雙調節機制,實現了卓越的環境抗干擾能力:溫補電路通過內置熱敏元件實時補償溫度波動對頻率的影響,壓控功能則支持外部電壓微調,輕松應對電網電壓波動,設備...

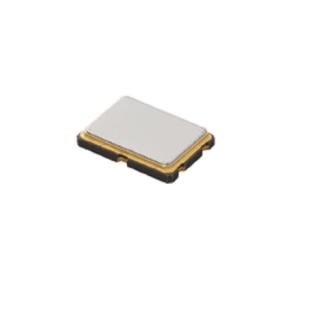

XTCLH19M200TJJC3P2,VCTCXO晶振,削峰正弦波晶振
XTCLH19M200TJJC3P2在生產與質量管控環節嚴格遵循ISO9001質量管理體系與RoHS2.0環保標準,從原材料采購到成品出廠建立全流程質量追溯體系:所有原材料均經過多輪篩選,其中核心部件晶體諧振器采用高純度石英材質(石英純度≥99.999%),通過精密切割與拋光工藝加工,確保晶體諧振頻率的穩定性與一致性,電子元件(如電容,電阻,變容二極管)均選用符合AEC-Q200標準的車規級或工業級元件,保障產品在極端環境下的可靠性.體積小巧的設計可適配PCB板高密度布局需求,尤其在輕薄型電子設備(如智能手機,平板電腦晶振)中,能有效節省電路板空間,減少設備整體尺寸,為產品外觀設計提供更大靈活性.內部結構采用全密封金屬外殼封裝(外殼材質為鎳合金,具有良好的電磁屏蔽性能),通過激光焊接工藝實現無縫密封,能有效隔絕灰塵,濕氣(防護等級可達IP65),腐蝕性氣體等外部環境因素對內部晶體諧振器的影響,避免晶體參數因環境侵蝕發生變化,顯著延長產品使用壽命,其典型MTBF(平均無故障工作時間)值可達100000小時以上,部分批次產品甚至可達200000小時,降低設備后期維護成本.

XTCLH19M200TJJC3P2,VCTCXO晶振,削峰正弦波晶振

Original model 原廠編碼	XTCLH19M200TJJC3P2
Manufacturer 品牌	Murata村田晶振
Part Series 型號	XTCLH
Type 類型	VCTCXO
Frequency 頻率	19.2 MHz
Output Type 輸出方式	削峰正弦波
Supply Voltage 電壓	3V低電流晶振
Frequency Stability 頻率穩定性	±200ppb
Operating Temperature 工作溫度	-40°C ~ 85°C
Package Size 包裝尺寸	5.00mm x 3.20mm
Package Height 厚度	1.50mm
Termination 腳位	8 pads
Package Type 封裝類型	8-SMD
Lead Free 無鉛	Yes
Mounting Style 安裝方式	Surface Mount
Packaging 包裝	Tape and Reel

XTCLH19M200TJJC3P2,VCTCXO晶振,削峰正弦波晶振

XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms	-30°C~85°C
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	30 MHz	±20ppm	±20ppm	6pF	100 Ohms	-30°C~85°C
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms	-30°C~85°C
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	16 MHz	±40ppm	±40ppm	8pF	200 Ohms	-30°C~85°C
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	27 MHz	±35ppm	±15ppm	6pF	80 Ohms	-40°C~125°C
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	26 MHz	±35ppm	±15ppm	8pF	80 Ohms	-40°C~125°C
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	20 MHz	±45ppm	±30ppm	6pF	150 Ohms	-40°C~125°C
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±20ppm	8pF	120 Ohms	-40°C~125°C
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	80 Ohms	-30°C~85°C
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	26 MHz	±20ppm	±20ppm	6pF	150 Ohms	-30°C~85°C
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	32 MHz	±15ppm	±10ppm	9pF	40 Ohms	-40°C~85°C
XRCGB26M000F1H89R0	Murata村田晶振	XRCGB	26 MHz	±10ppm	±10ppm	5pF	60 Ohms	-30°C~85°C
XRCGE24M545FBA1BR0	Murata村田晶振	XRCGE	24.545452 MHz	±35ppm	±15ppm	8pF	100 Ohms	-40°C~125°C
XRCGB40M000F0Z00R0	Murata村田晶振	XRCGB	40 MHz	±100ppm	±100ppm	6pF	100 Ohms	-40°C~100°C
XRCGB38M400F1S1CR0	Murata村田晶振	XRCGB	38.4 MHz	±10ppm	±10ppm	10pF	60 Ohms	-30°C~85°C
XRCGB24M000F1SBAR0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±10ppm	6pF	70 Ohms	-40°C~105°C
XRCGE30M000F3A1AR0	Murata村田晶振	XRCGE	30 MHz	±45ppm	±30ppm	6pF	70 Ohms	-40°C~125°C
XRCGE30M000F3A1BR0	Murata村田晶振	XRCGE	30 MHz	±45ppm	±30ppm	8pF	70 Ohms	-40°C~125°C
XRCGE50M000F3A1BR0	Murata村田晶振	XRCGE	50 MHz	±45ppm	±30ppm	8pF	50 Ohms	-40°C~125°C
XRCGB38M400F1S2FR0	Murata村田晶振	XRCGB	38.4 MHz	±20ppm	±10ppm	6pF	60 Ohms	-40°C~105°C
XRCGB32M000F5N10R0	Murata村田晶振	XRCGB	32 MHz	±30ppm	±50ppm	6pF	100 Ohms	-40°C~85°C
XRCGB25M000FAN00R0	Murata村田晶振	XRCGB	25 MHz	±25ppm	±25ppm	6pF	150 Ohms	-10°C~70°C
XRCGB25M000F0L00R0	Murata村田晶振	XRCGB	25 MHz	±50ppm	±100ppm	6pF	150 Ohms	-30°C~85°C
XRCGB40M000F4M00R0	Murata村田晶振	XRCGB	40 MHz	±40ppm	±45ppm	6pF	100 Ohms	-30°C~85°C
XRCGB27M000FAN16R0	Murata村田晶振	XRCGB	27 MHz	±25ppm	±25ppm	12pF	90 Ohms	-10°C~70°C
XRCGB26M000F0L00R0	Murata村田晶振	XRCGB	26 MHz	±50ppm	±100ppm	6pF	150 Ohms	-30°C~85°C
XRCGB27M120F2P11R0	Murata村田晶振	XRCGB	27.12 MHz	±20ppm	±20ppm	6pF	80 Ohms	-30°C~85°C
XRCGB32M000F2P10R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	70 Ohms	-30°C~85°C
XRCGB30M000F3M00R0	Murata村田晶振	XRCGB	30 MHz	±40ppm	±30ppm	6pF	100 Ohms	-30°C~85°C
XRCGB32M000F3N00R0	Murata村田晶振	XRCGB	32 MHz	±25ppm	±30ppm	6pF	100 Ohms	-20°C~85°C
XRCGB24M000F3M26R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	120 Ohms	-40°C~85°C
XRCGB32M000F3M01R0	Murata村田晶振	XRCGB	32 MHz	±40ppm	±30ppm	8pF	100 Ohms	-30°C~85°C
XRCGB25M000F3N00R0	Murata村田晶振	XRCGB	25 MHz	±30ppm	±30ppm	6pF	150 Ohms	-20°C~85°C
XRCGB27M000F3M00R0	Murata村田晶振	XRCGB	27 MHz	±40ppm	±30ppm	6pF	150 Ohms	-30°C~85°C
XRCGB40M000F1S1BR0	Murata村田晶振	XRCGB	40 MHz	±10ppm	±10ppm	8pF	50 Ohms	-30°C~85°C
XRCHA16M000F0A01R0	Murata村田晶振	XRCHA	16 MHz	±100ppm	±100ppm	8pF	100 Ohms	-40°C~125°C
